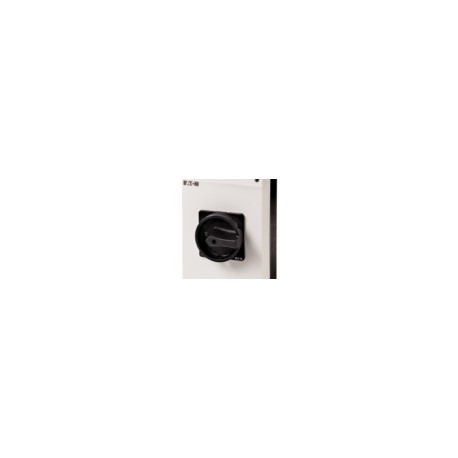

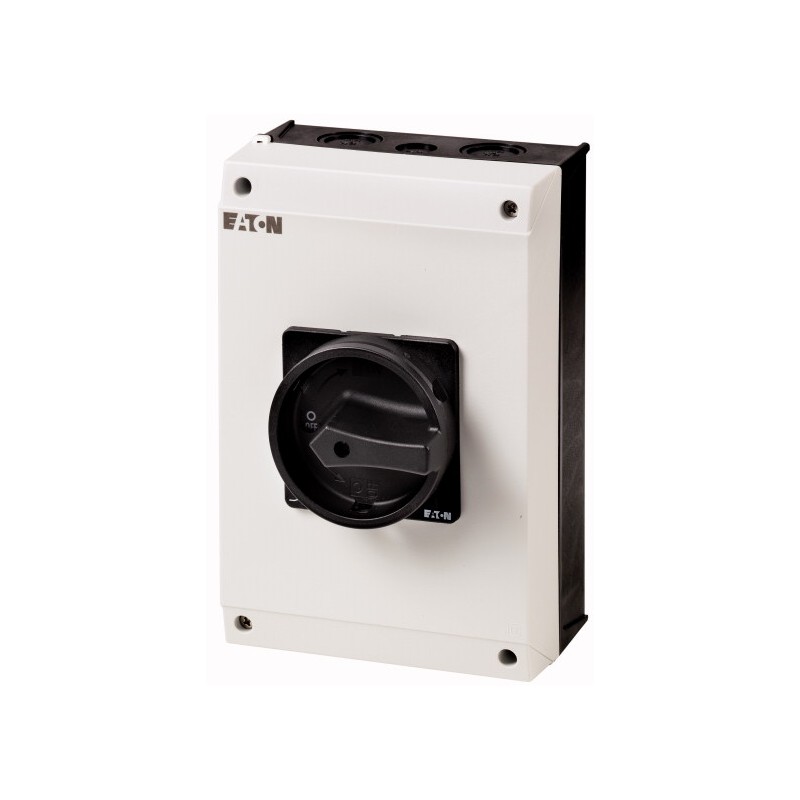

T5-3-8342/I5/SVB-SW 207280 Switch desconectador 100 Amperes, Montaje en superficie

Descripción Tipo de producto Swhitch principal Función de paro With black rotary handle and locking ring Number of poles 6 pole Locking facility Lockable in the 0 (Off) position Degree of Protection IP65 Design surface mounting Contact sequence Switching angle 90 ° Design number 8342 Function Motor rating AC-23A, 50 – 60 Hz [P] 400 V [P] 55 kW Rated uninterrupted current [Iu] 100 A Note on rated uninterrupted current !u Rated uninterrupted current Iu is specified for max. cross-section. Number of contact units 3 contact unit(s)
