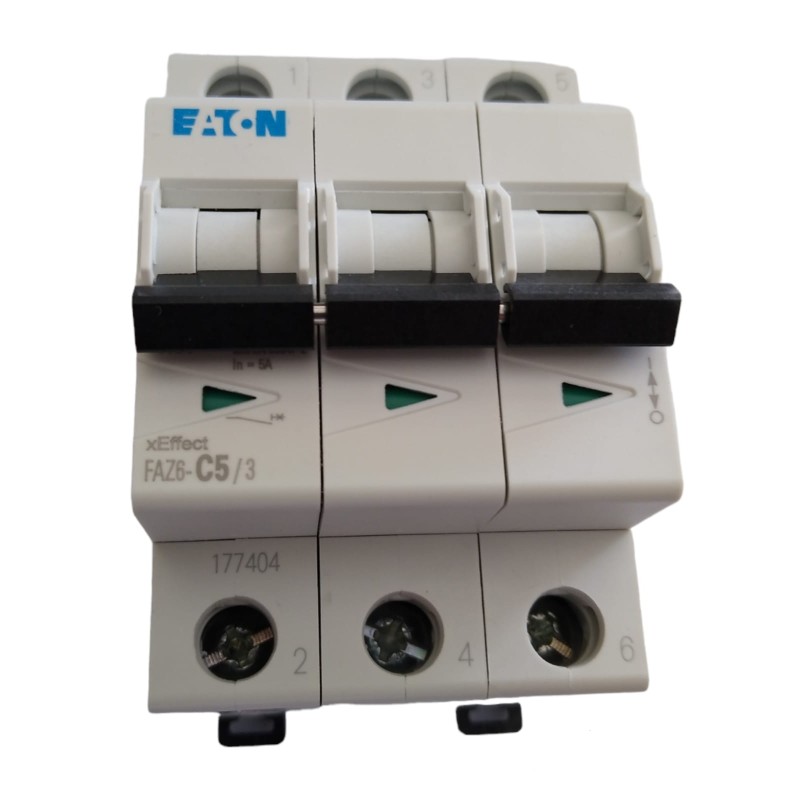

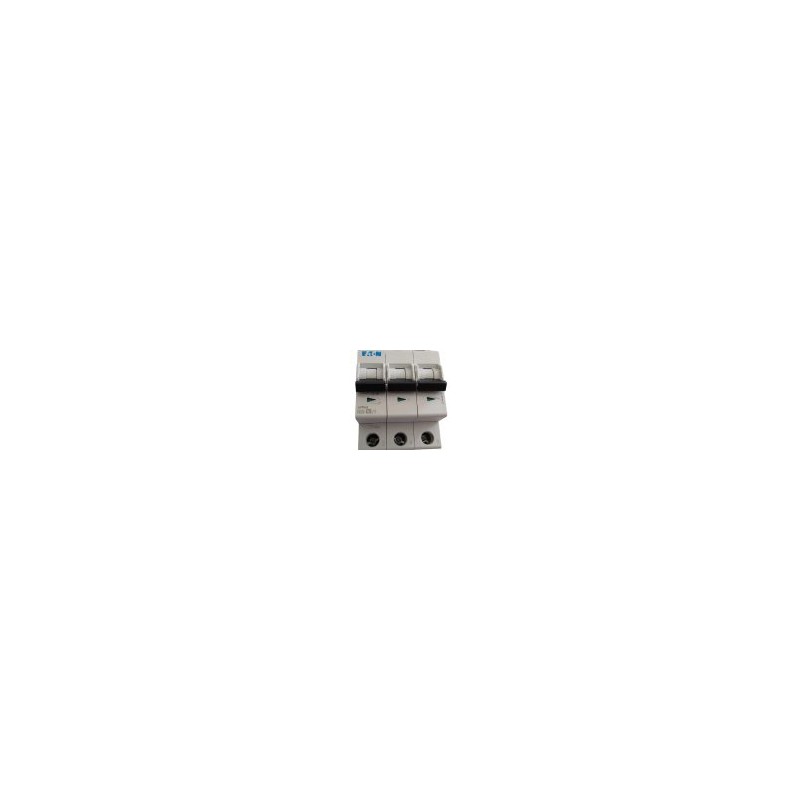

177404 FAZ6-C5/3. Miniature circuit breaker (MCB), 5 A, 3p, characteristic: C, 6 kA. EATON KLOEME

Descripción DEGREE OF PROTECTION IP20 EQUIPMENT HEAT DISSIPATION, CURRENT-DEPENDENT 5.8 W RATED IMPULSE WITHSTAND VOLTAGE (UIMP) 4 kV AMBIENT OPERATING TEMPERATURE – MAX 75 °C AMBIENT OPERATING TEMPERATURE – MIN -25 °C BUILT-IN DEPTH 70.5 mm CONNECTABLE CONDUCTOR CROSS SECTION (MULTI-WIRED) – MAX 25 mm² CONNECTABLE CONDUCTOR CROSS SECTION (MULTI-WIRED) – MIN 1 mm² CONNECTABLE CONDUCTOR CROSS SECTION (SOLID-CORE) – MAX 25 mm² CONNECTABLE CONDUCTOR CROSS SECTION (SOLID-CORE) – MIN 1 mm² CURRENT LIMITING CLASS 3 FREQUENCY RATING – MAX 60 Hz FREQUENCY RATING – MIN 50 Hz VOLTAGE RATING (IEC/EN 60898-1) 415 V WIDTH IN NUMBER OF MODULAR SPACINGS 3 VOLTAGE RATING (IEC/EN 60947-2) 400 VOLTAGE TYPE AC OVERVOLTAGE CATEGORY III RELEASE CHARACTERISTIC C NUMBER OF POLES (PROTECTED) 3 NUMBER OF POLES (TOTAL) 3 OPERATIONAL VOLTAGE (IEC/EN 60947-2) – MAX 400 V OPERATIONAL VOLTAGE AT DC (EC/EN 60947-2) – MAX 60 V RATED INSULATION VOLTAGE (UI) 440 V RATED OPERATIONAL CURRENT FOR SPECIFIED HEAT DISSIPATION (IN) 5 A RATED OPERATIONAL VOLTAGE (UE) – MAX 400 V RATED SERVICE SHORT-CIRCUIT BREAKING CAPACITY (IEC/EN 60898-1) 6 kA RATED SERVICE SHORT-CIRCUIT BREAKING CAPACITY (IEC/EN 60947-2) 10 kA RATED SHORT-CIRCUIT BREAKING CAPACITY (EN 60898) AT 230 V 6 kA RATED SHORT-CIRCUIT BREAKING CAPACITY (EN 60898) AT 400 V 6 kA RATED SHORT-CIRCUIT BREAKING CAPACITY (IEC 60947-2) AT 230 V 10 kA RATED SHORT-CIRCUIT BREAKING CAPACITY (IEC 60947-2) AT 400 V 10 kA RATED SWITCHING CAPACITY (IEC/EN 60947-2) 7.5 kA POWER LOSS 4.8 W
