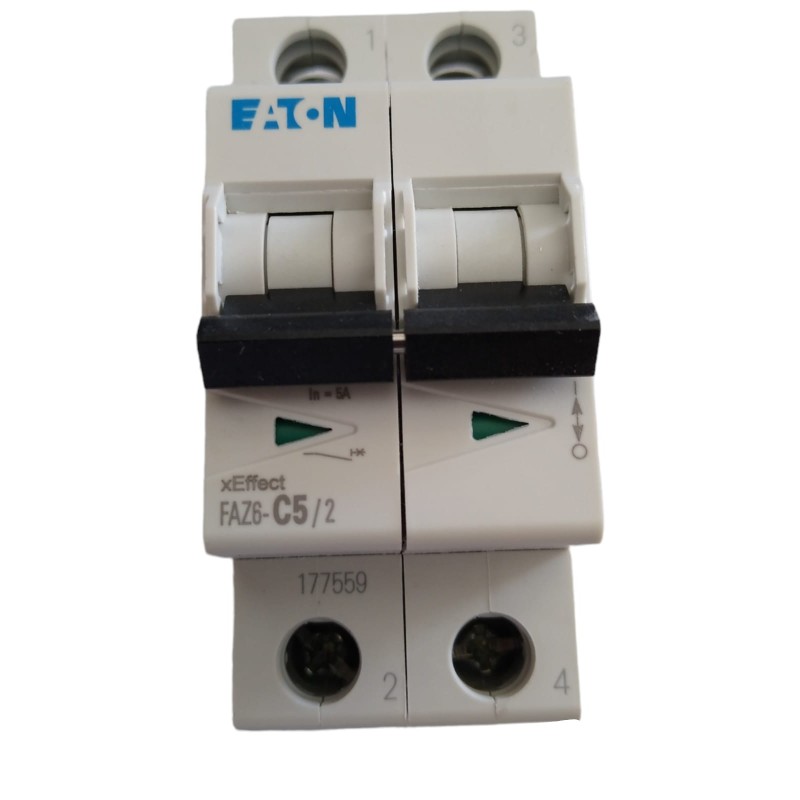

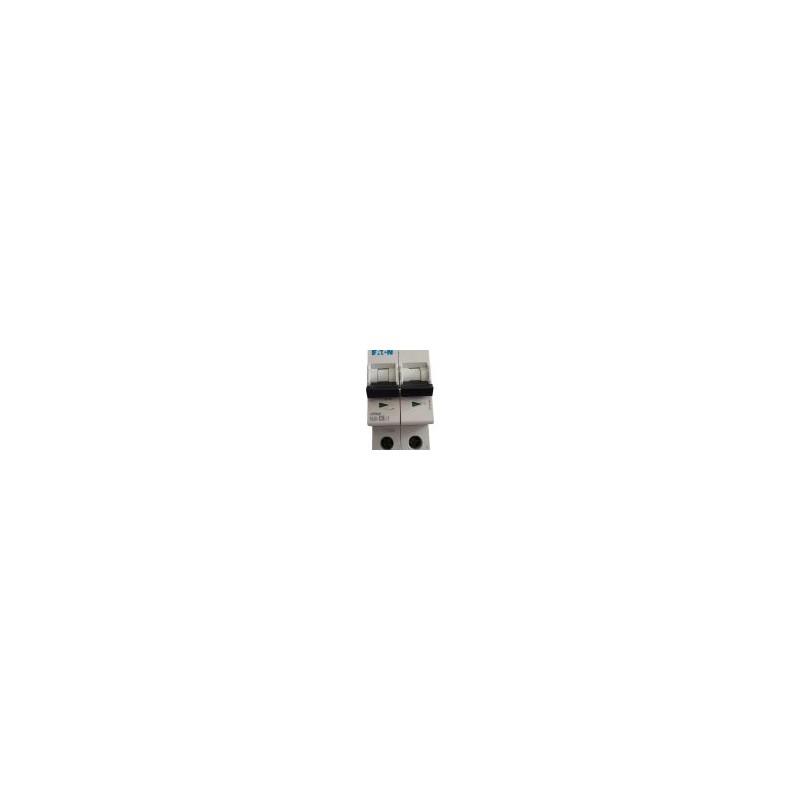

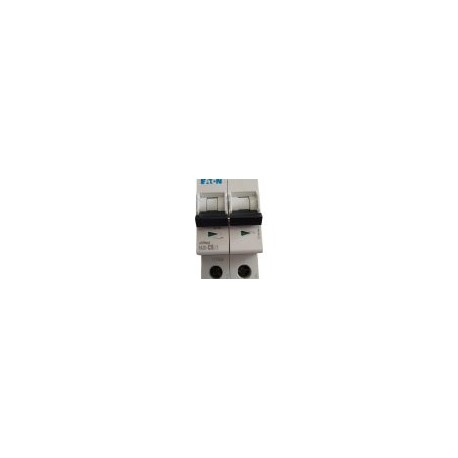

177559 Interruptor magnetotérmico FAZ6, 5A, 2P, curva C. Eaton Kloeme

Descripción 2 total views , 1 views today Product Name Eaton Moeller series xEffect – FAZ6 MCB Catalog Number 177559 EAN 4015081720194 Product Length/Depth 72.6 mm Product Height 80 mm Product Width 36 mm Product Weight 0.226 kg Compliances CE Marked RoHS conform Model Code FAZ6-C5/2 Programa de entrega Number of poles (total) 2 Number of poles (protected) 2 Release characteristic C Amperage Rating 5 A Datos técnicos – eléctricos Voltage type AC Voltage rating (IEC/EN 60898-1) 415 V Voltage rating (IEC/EN 60947-2) 400 Rated operational voltage (Ue) – max 400 V Operational voltage (IEC/EN 60947-2) – max 400 V Operational voltage at DC (EC/EN 60947-2) – max 60 V Rated insulation voltage (Ui) 440 V Rated impulse withstand voltage (Uimp) 4 kV Frequency rating – min 50 Hz Frequency rating – max 60 Hz Rated switching capacity (IEC/EN 60947-2) 7.5 kA Rated service short-circuit breaking capacity (IEC/EN 60898-1) 6 kA Rated service short-circuit breaking capacity (IEC/EN 60947-2) 10 kA Rated short-circuit breaking capacity (EN 60898) at 230 V 6 kA Rated short-circuit breaking capacity (EN 60898) at 400 V 6 kA Rated short-circuit breaking capacity (IEC 60947-2) at 230 V 10 kA Rated short-circuit breaking capacity (IEC 60947-2) at 400 V 10 kA Overvoltage category III Pollution degree 2 Datos técnicos – mecánicos Width in number of modular spacings 2 Built-in depth 70.5 mm Degree of protection IP20 Connectable conductor cross section (solid-core) – min 1 mm² Connectable conductor cross section (solid-core) – max 25 mm² Connectable conductor cross section (multi-wired) – min 1 mm² Connectable conductor cross section (multi-wired) – max 25 mm² Verificación del diseño según la norma IEC/EN 61439 – datos técnicos Rated operational current for specified heat dissipation (In) 5 A Equipment heat dissipation, current-dependent 3.8 W Ambient operating temperature – min -25 °C Ambient operating temperature – max 75 °C
