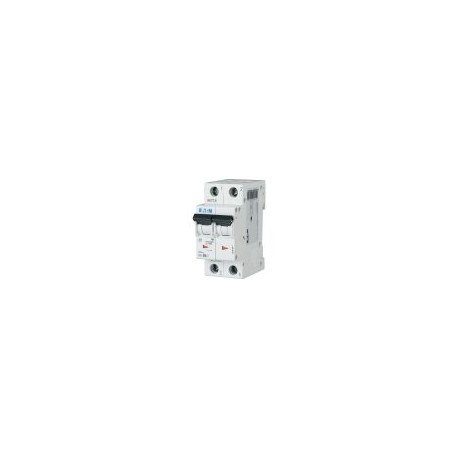

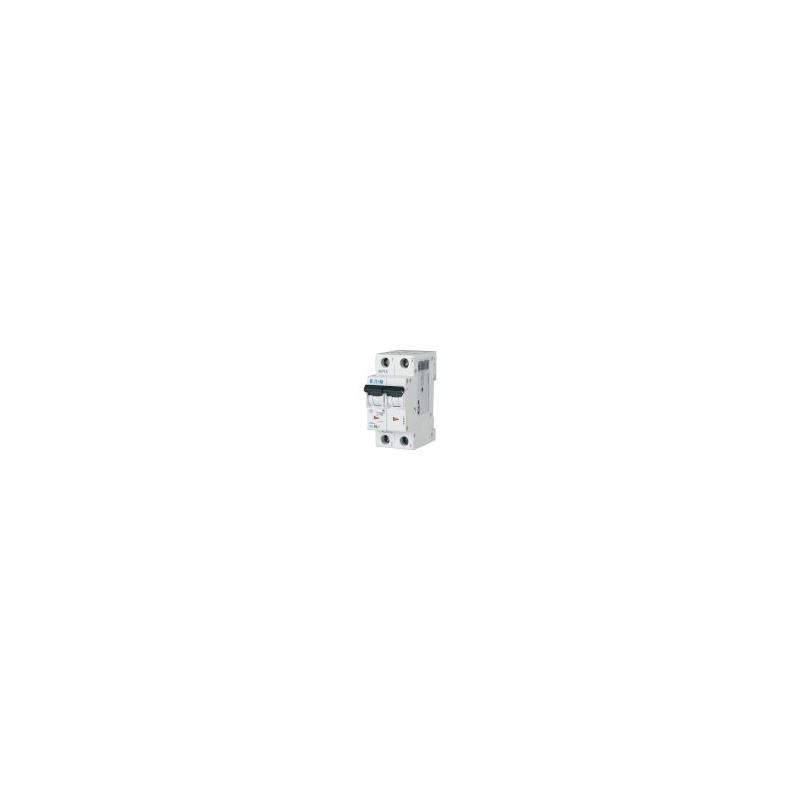

239098 FAZ6-C3/2 – Miniature circuit breaker (MCB), 3 A, 2p, characteristic: C, 6 kA. KLOEME

Descripción Product name Eaton Moeller series xEffect – FAZ6 MCB Part no. FAZ6-C3/2 EAN 4015082390983 Product Length/Depth 85 millimetre Product height 73 millimetre Product width 35.4 millimetre Product weight 0.216 kilogram Compliances RoHS conform Product Tradename xEffect – FAZ6 Product Type MCB Product Sub Type None Delivery program Number of poles (total) 2 Number of poles (protected) 2 Release characteristic C Amperage Rating 3 A Technical Data – Electrical Voltage type AC Voltage rating (IEC/EN 60898-1) 415 V Voltage rating (IEC/EN 60947-2) 400 Rated operational voltage (Ue) – max 230 V Operational voltage (IEC/EN 60947-2) – max 400 V Operational voltage at DC (EC/EN 60947-2) – max 60 V Rated insulation voltage (Ui) 440 V Rated impulse withstand voltage (Uimp) 4 kV Frequency rating – min 50 Hz Frequency rating – max 60 Hz Rated switching capacity (IEC/EN 60947-2) 7.5 kA Rated service short-circuit breaking capacity (IEC/EN 60898-1) 6 kA Rated service short-circuit breaking capacity (IEC/EN 60947-2) 10 kA Rated short-circuit breaking capacity (EN 60898) at 230 V 6 kA Rated short-circuit breaking capacity (EN 60898) at 400 V 6 kA Rated short-circuit breaking capacity (IEC 60947-2) at 230 V 10 kA Rated short-circuit breaking capacity (IEC 60947-2) at 400 V 10 kA Overvoltage category III Pollution degree 2
