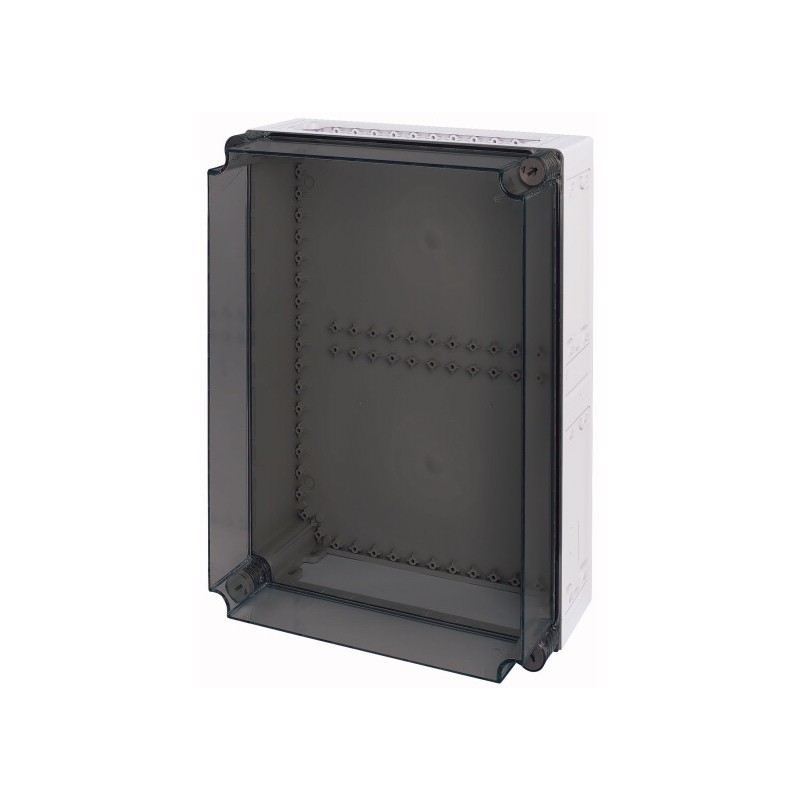

CI45-200 001896 Caja policarbonato LxAxP500x375x225mm

Descripción Dimensions Función básica Resguardar componentes eléctricos Product function Panel enclosures Single unit/Complete unit Single unit Degree of Protection IP65 Standards EN 62208 EN 61439-2 Description Housing prepared for distribution board Two sides closed, can be folded out; two sides open Sealable cover fasteners Integrated pressure-relief mechanism for short-circuits Type cover Transparent Width 375 mm Height 500 mm Depth 225 mm Mounting depth with mounting plate 200 mm Mounting depth for mounting rail 7.5 mm height 192.5 mm Mounting depth for mounting rail 15 mm height 185 mm Enclosure depth Legend for the graphic Dimensions from top: Mounting depth with mounting plate Mounting depth for mounting rail 7.5 mm height Mounting depth for mounting rail 15 mm height Enclosure depth Enclosure depth
