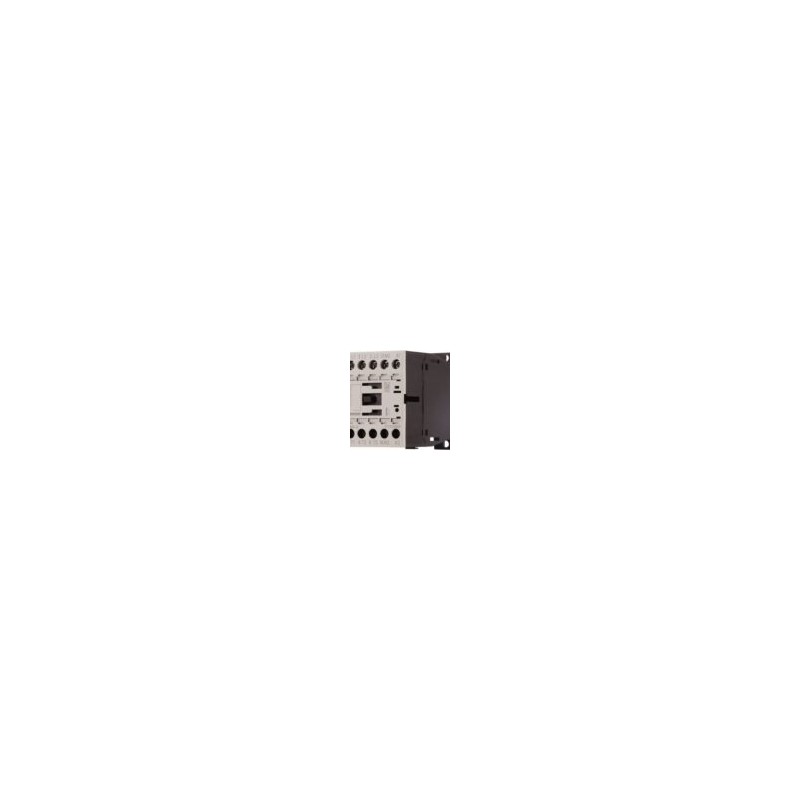

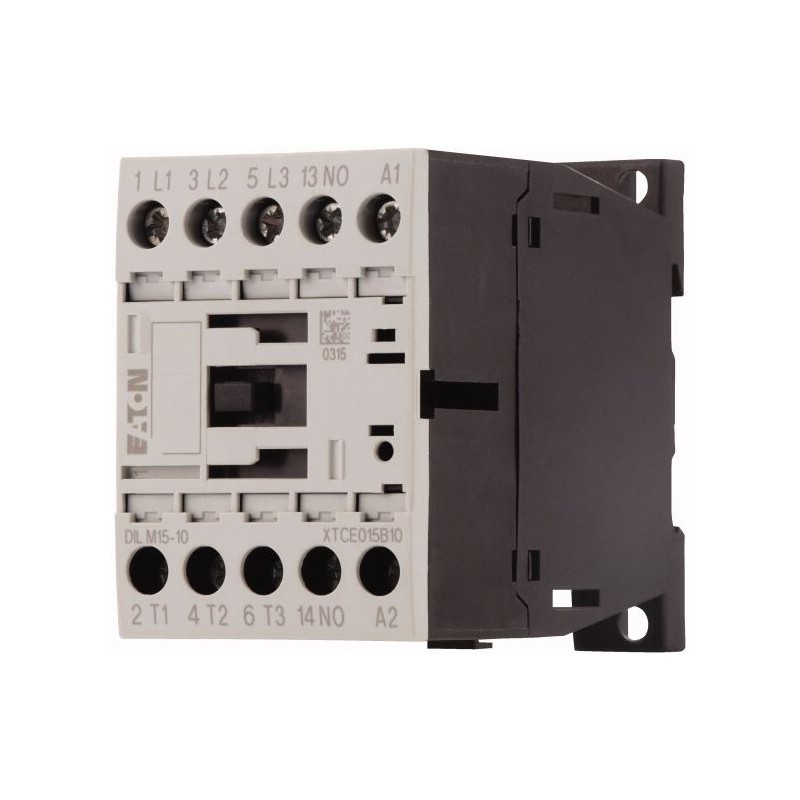

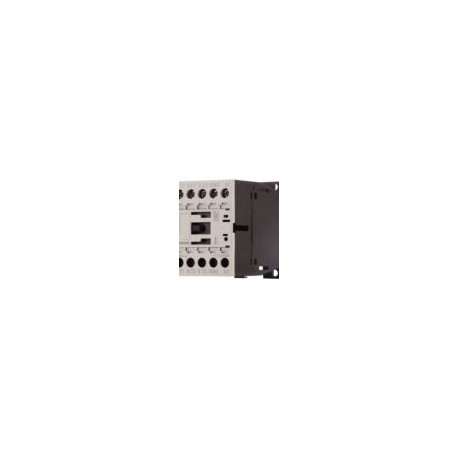

DILM15-10(24VDC) 290073 Contactor 3 polos, 1N/O, bobina 24 voltios de corriente directa marca EATON

Descripción Contactor 3 polos 1 Contacto auxiliar normalmente abierto Bobina 24 voltios de corriente directa Aplicación: Motores eléctricos Utilization category AC-1: Non-inductive or slightly inductive loads, resistance furnaces NAC-3: Normal AC induction motors: starting, switch off during running AC-4: Normal AC induction motors: starting, plugging, reversing, inching Notes Not suitable for motors with efficiency class IE3. Connection technique Screw terminals Number of poles 3 pole Rated operational current AC-3Notes At maximum permissible ambient temperature (open.) AC-3380 V 400 V [Ie] 15.5 A AC-1Conventional free air thermal current, 3 pole, 50 – 60 HzOpenat 40 °C [Ith =Ie] 22 A AC-1Conventional free air thermal current, 3 pole, 50 – 60 Hzenclosed [Ith ] 18 A AC-1Conventional free air thermal current, 1 poleopen [Ith ] 50 A AC-1Conventional free air thermal current, 1 poleenclosed [Ith ] 45 A Max. rating for three-phase motors, 50 – 60 Hz AC-3220 V 230 V [P] 4 kW AC-3380 V 400 V [P] 7.5 kW AC-3660 V 690 V [P] 7 kW AC-4220 V 230 V [P] 2 kW AC-4380 V 400 V [P] 3 kW AC-4660 V 690 V [P] 4.4 kW Contacts N/O = Normally open 1 N/O Contact sequence Instructions Contacts to EN 50 012. Integrated varistor suppressor circuit. Can be combined with auxiliary contact DILM32-XHI… DILA-XHI(V)… Actuating voltage 24 V DC Voltage AC/DC DC operation Connection to SmartWire-DT yes in conjunction with DIL-SWD SmartWire DT contactor module Frame size 1
