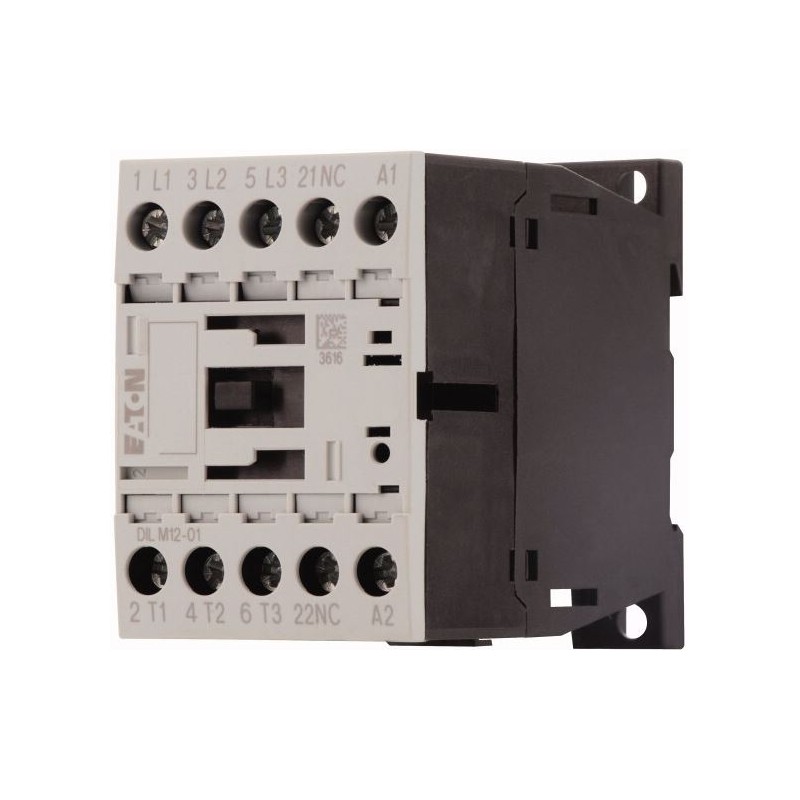

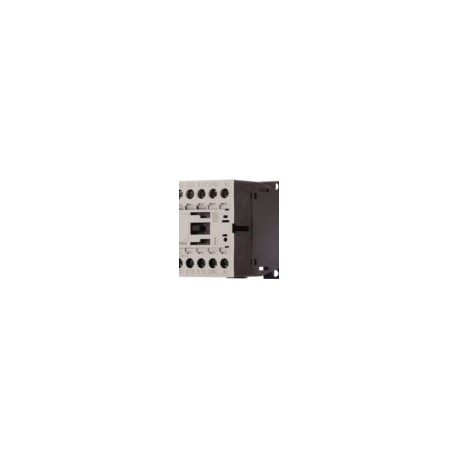

DILM12-01(24V) 276880 Contactor 3 Polos Bobina 24 Voltios Corriente Directa Marca EATON

Descripción 96 total views , 1 views today Contactor EATON 3 Polos 1 Contacto NC(Normalmente Cerrado) Aplicación: Motores eléctricos DELIVERY PROGRAM Product range Contactors Application Contactors for Motors Subrange Contactors up to 170 A, 3 pole Utilization category AC-1: Non-inductive or slightly inductive loads, resistance furnaces AC-3/AC-3e: Normal AC induction motors: Starting, switching off while running AC-4: Normal AC induction motors: starting, plugging, reversing, inching Notes Also suitable for motors with efficiency class IE3. Connection technique Screw terminals Number of poles 3 pole Rated operational current AC-3Notes At maximum permissible ambient temperature (open.) Also tested according to AC-3e. AC-3380 V 400 V [Ie] 12 A AC-1Conventional free air thermal current, 3 pole, 50 – 60 HzOpenat 40 °C [Ith =Ie] 22 A AC-1Conventional free air thermal current, 3 pole, 50 – 60 Hzenclosed [Ith ] 18 A AC-1Conventional free air thermal current, 1 poleopen [Ith ] 50 A AC-1Conventional free air thermal current, 1 poleenclosed [Ith ] 45 A Max. rating for three-phase motors, 50 – 60 Hz AC-3220 V 230 V [P] 3.5 kW AC-3380 V 400 V [P] 5.5 kW AC-3660 V 690 V [P] 6.5 kW AC-4220 V 230 V [P] 2 kW AC-4380 V 400 V [P] 3 kW AC-4660 V 690 V [P] 4.4 kW Contacts N/C = Normally closed 1 NC Contact sequence Instructions Contacts to EN 50 012. Integrated varistor suppressor circuit. with mirror contact. Can be combined with auxiliary contact DILA-XHI(V)… Actuating voltage 24 V DC Voltage AC/DC DC operation Connection to SmartWire-DT yes in conjunction with DIL-SWD SmartWire DT contactor module Frame size 1
