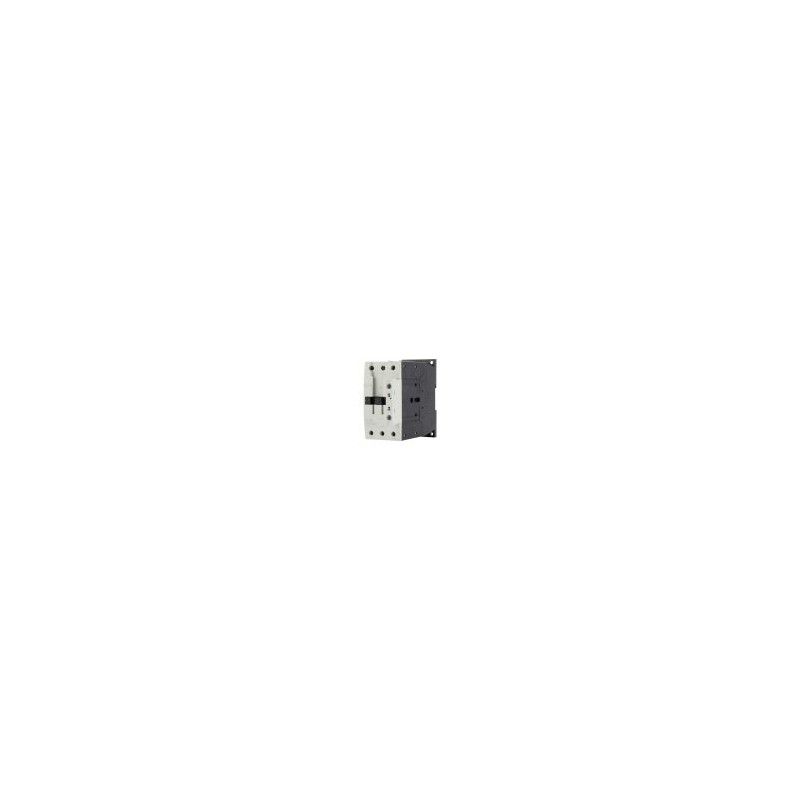

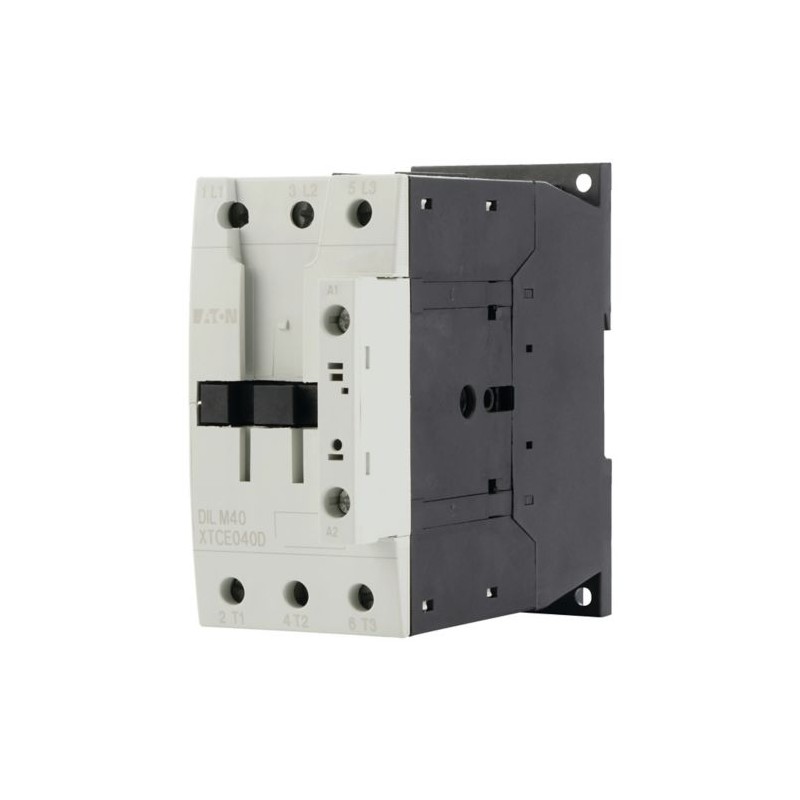

277765 DILM40(220V50HZ,240V60HZ) – Contactor, 3 pole, 380 V 400 V 18.5 kW, 220 V 50 Hz, 240 V 60 Hz. Eaton Mueller

Descripción 8 total views , 3 views today EAN 4015082777654 Product Length/Depth 132.1 millimetre Product height 115 millimetre Product width 55 millimetre Product weight 0.872 kilogram Certifications UL VDE 0660 CSA-C22.2 No. 60947-4-1-14 CSA CSA Class No.: 2411-03, 3211-04 UL File No.: E29096 UL Category Control No.: NLDX CE IEC/EN 60947 UL 60947-4-1 CSA File No.: 012528 IEC/EN 60947-4-1 Product Tradename DILM Product Type Contactor Product Sub Type None Catalog Notes Contacts according to EN 50012 General information Application Contactors for Motors Degree of protection IP00 Frame size FS3 Lifespan, mechanical 10,000,000 Operations (AC operated) Operating frequency 5000 mechanical Operations/h (AC operated) Overvoltage category III Pollution degree 3 Product category Contactors Protection Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274) Rated impulse withstand voltage (Uimp) 8000 V AC Resistance per pole 1.9 mΩ Suitable for Also motors with efficiency class IE3 Utilization category AC-3: Normal AC induction motors: starting, switch off during running AC-4: Normal AC induction motors: starting, plugging, reversing, inching AC-1: Non-inductive or slightly inductive loads, resistance furnaces Voltage type AC
