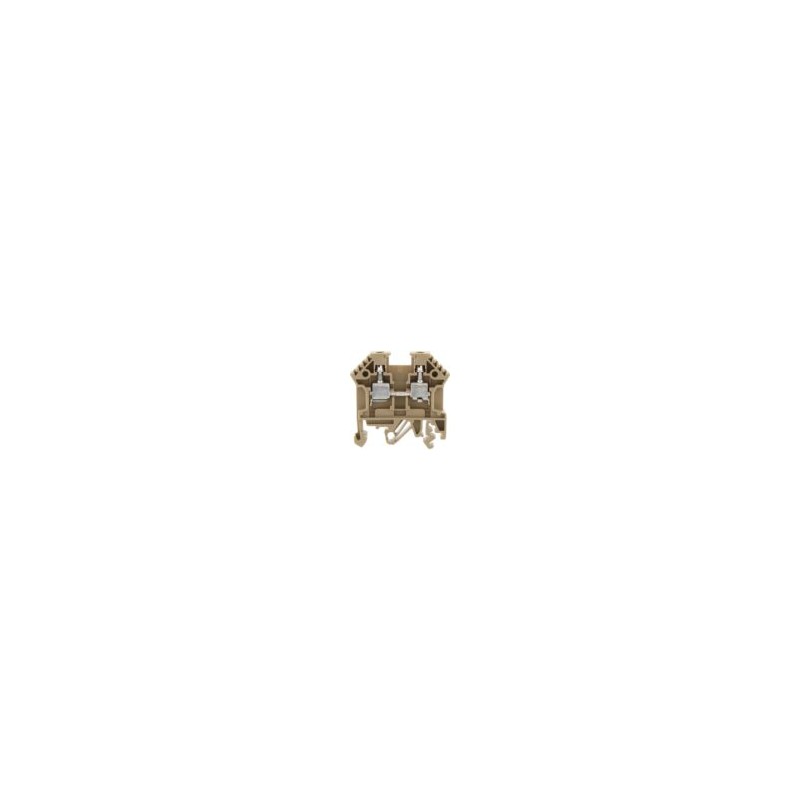

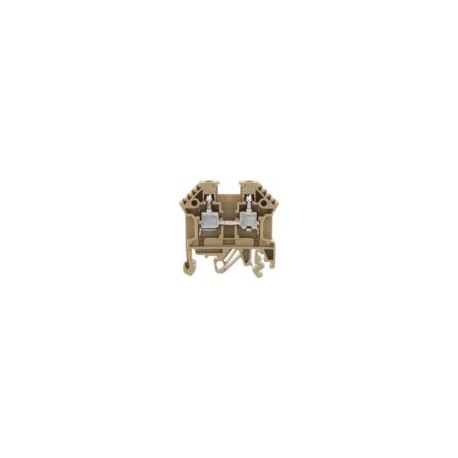

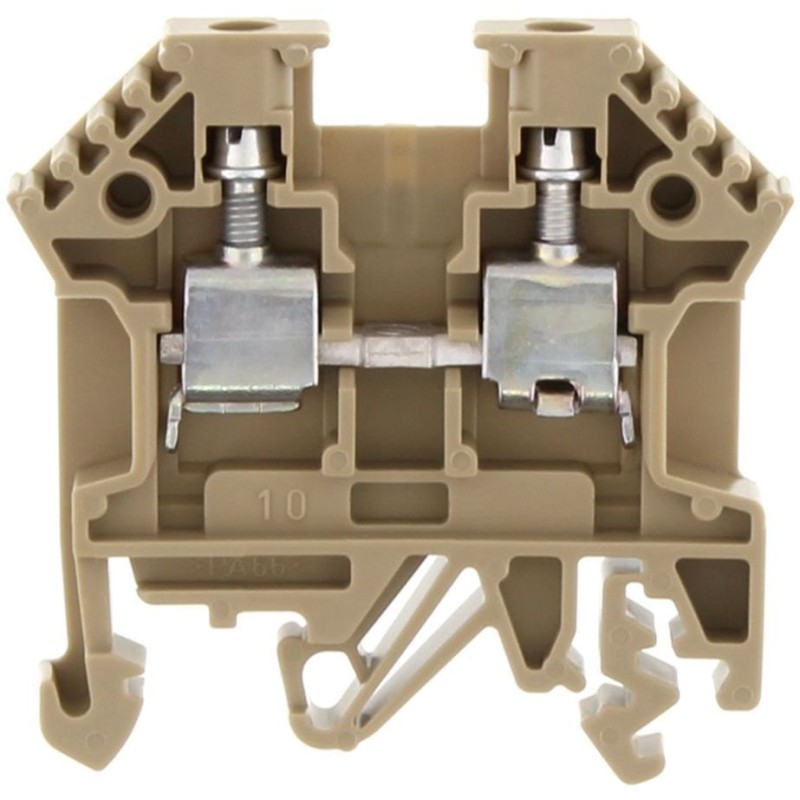

RK 2,5-4 BG CO1001.2 Clema de paso Beige marca CONTACLIP

Descripción Terminal de alimentación Conexión por tornillo Tipo de montaje: Montaje en riel TS 35/7.5 and TS 32 Sección transversal: 4 mm² Ancho: 6 mm Color: Beige Dimensions Length: 48 mm Width: 6 mm Height TS 35/7.5: 47 mm Height TS 32: 51.5 mm Ratings Rated voltage: 800 V Rated current: 32 A Rated cross-section: 4 mm² Rated impulse voltage: 8 kV Overvoltage category: III Contamination degree: 3 Maximum power dissipation for nominal condition: 1.02 W Connection data Connection principle: Screw connection Connection position: Lateral Connections: 2 Number of terminals per level: 2 Number of levels: 1 Wire cross-section single-core (rigid) / stranded, min.: 0.2 mm² Wire cross-section single core (rigid)/stranded, max.: 6 mm² Wire cross-section stranded, min.: 0.2 mm² Wire cross-section stranded, max.: 6 mm² Wire cross-section stranded with wire-end ferrules, min.: 0.2 mm² Wire cross-section stranded with wire-end ferrules, max.: 4 mm² Wire cross-section AWG, min.: 22 Wire cross-section AWG, max.: 11 Stripping length: 12 mm Screw head: Slotted Screw threading: M 3 Tightening torque, min.: 0.5 Nm Tightening torque, max.: 1 Nm Materials Insulation housing: Polyamide 6.6 , Polyamide 6.6 Flammability class UL 94: V-2 Working temperature, min.: -40 °C Working temperature, max.: 105 °C Further technical data Insulation housing: Polyamide 6.6 Flammability class UL 94: V-2 Working temperature, min.: -40 °C Working temperature, max.: 105 °C Mounting type: Mounting rail TS 35/7.5 and TS 32 Gauge plug acc. to EN 60 947-1: A4 Number of cross-connection channels: 1 End plate required: Number of test pick-off options: 1 Maximum power dissipation for nominal condition: 1.02 W Environmental Product Compliance REACH Conform: yes REACH Reference date: 2022-01-17 REACH Candidate Substance Note: No RoHS Conform: yes
