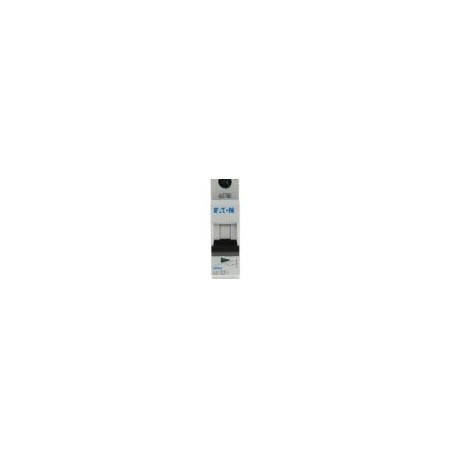

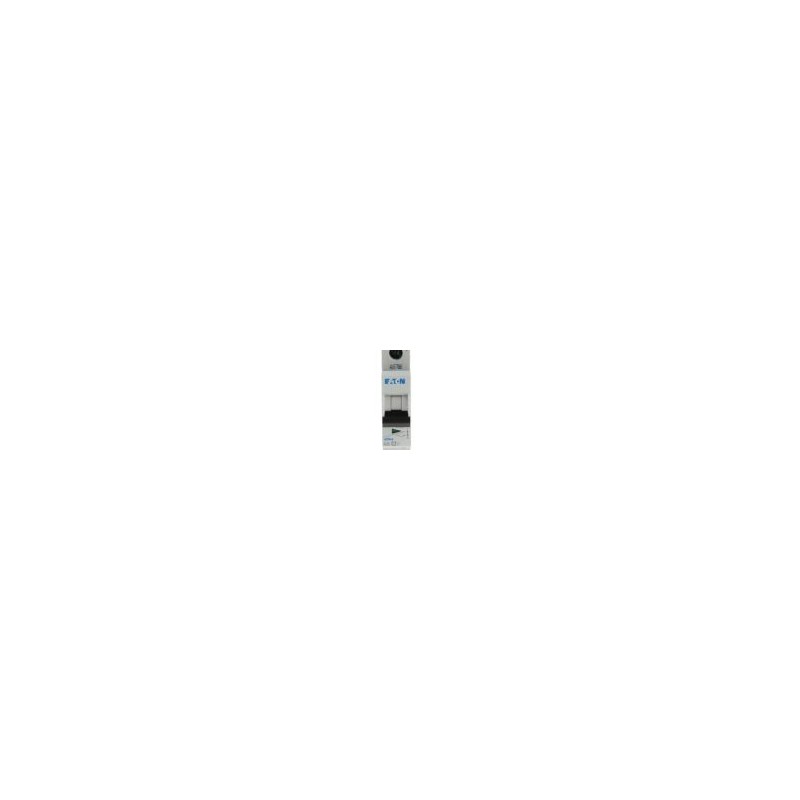

239031, FAZ6-C2/1 Miniature circuit breaker (MCB), 2 A, 1p, characteristic: C, 6 kA, Eaton Moeller series xEffect

Descripción Product Length/Depth 85 millimetre Product height 73 millimetre Product width 17.7 millimetre Product weight 0.12 kilogram Compliances RoHS conform Product Tradename xEffect – FAZ6 Product Type MCB Product Sub Type None Delivery program Number of poles (total) 1 Number of poles (protected) 1 Release characteristic C Amperage Rating 2 A Technical Data – Electrical Voltage type AC Voltage rating (IEC/EN 60898-1) 240 V Voltage rating (IEC/EN 60947-2) 230 Rated operational voltage (Ue) – max 230 V Operational voltage (IEC/EN 60947-2) – max 230 V Operational voltage at DC (EC/EN 60947-2) – max 60 V Rated insulation voltage (Ui) 440 V Rated impulse withstand voltage (Uimp) 4 kV Frequency rating – min 50 Hz Frequency rating – max 60 Hz Rated switching capacity (IEC/EN 60947-2) 7.5 kA Rated service short-circuit breaking capacity (IEC/EN 60898-1) 6 kA Rated service short-circuit breaking capacity (IEC/EN 60947-2) 10 kA Rated short-circuit breaking capacity (EN 60898) at 230 V 6 kA Rated short-circuit breaking capacity (EN 60898) at 400 V 6 kA Rated short-circuit breaking capacity (IEC 60947-2) at 230 V 10 kA Rated short-circuit breaking capacity (IEC 60947-2) at 400 V 10 kA Overvoltage category III Pollution degree 2 Technical Data – Mechanical Width in number of modular spacings 1 Built-in depth 70.5 mm Degree of protection IP20 Connectable conductor cross section (solid-core) – min 1 mm² Connectable conductor cross section (solid-core) – max 25 mm² Connectable conductor cross section (multi-wired) – min 1 mm² Connectable conductor cross section (multi-wired) – max 25 mm²
