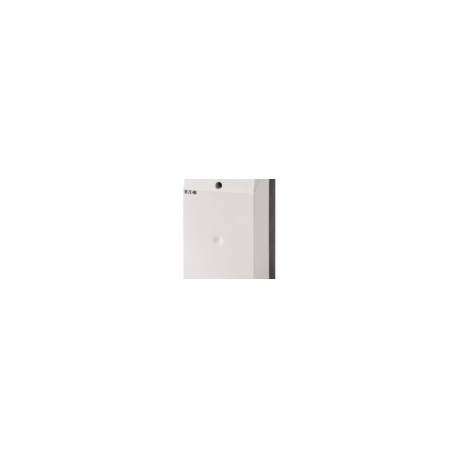

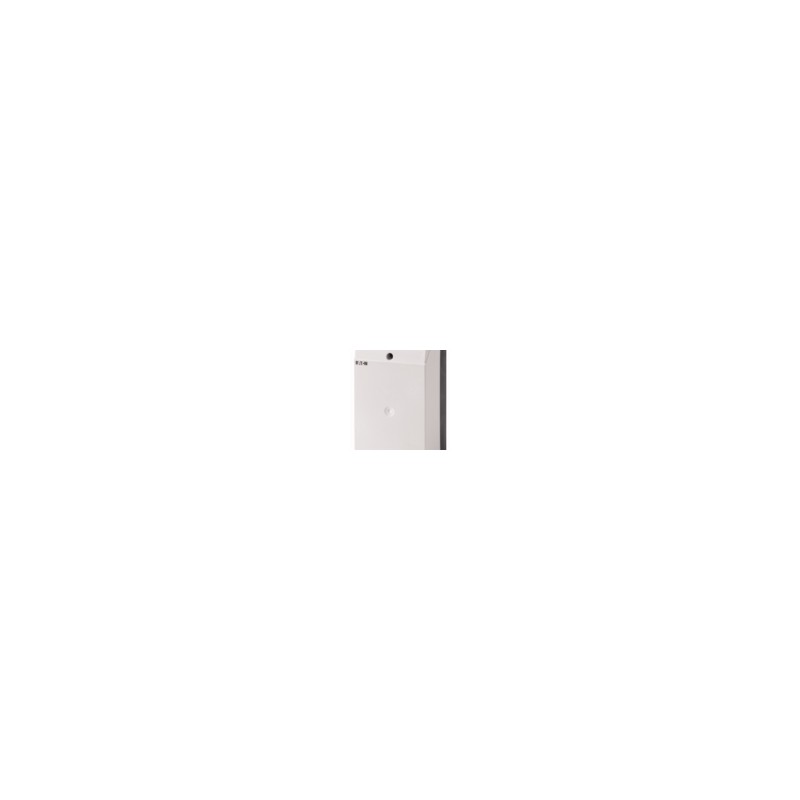

CI-K3-125-M 206895 caja policarbonato pequeña

Descripción 116 total views , 1 views today Tipo de producto CI-K caja pequeña Función básica Resguardar componentes Basic enclosures Product function CI-K empty enclosures Single unit/Complete unit Single unit Degree of Protection Front IP65 IP65, with push-through cable entry Degree of Protection Front IP65 IP65, with push-through cable entry Material Glass-fibre reinforced polycarbonate Colour Enclosure base RAL 9005, black Operator only RAL 7035, light gray Description Metric cable entry knockouts top, bottom and in the back plate Control cable entry Lamp indicator L‐… can be mounted in base knock-out M20/M25 Cable entry hard knockout version Dimensions Width 120 mm Height 200 mm Depth 125 mm Dimensions Enclosure depth Legend for the graphic Dimensions from top: Mounting depth with mounting plate Mounting depth for mounting rail 7.5 mm height Mounting depth for mounting rail 15 mm height Enclosure depth Mounting depth with mounting plate 98 mm Features With mounting plate Notes N R       Knockouts Knockouts 2 x M25/20 2 x M25/20 1 x M20 U    Back plate: 2 x M25/20
